If you have a water well, one of the most important components you can install is a pitless adapter. Pitless adapters for water wells provide reliable water delivery, improve system performance, and protect your well from freezing and contamination.
In this guide we will explain what a pitless adapter is, how it works, types of pitless well adapters, installation basics, and answers to common questions well owners ask.
What Is a Pitless Adapter
A pitless adapter is a special connection fitted to the well casing below ground that allows water to move from the submersible pump inside the well into the underground service line that carries water to your house, barn or yard hydrant. The adapter creates a watertight and frost proof path for the water line so it does not freeze in cold weather.
This setup replaces the older well pit design by placing the water connection safely underground without the need for an open pit or vault. The pitless adapter for well systems improves water quality, extends the life of components, and makes maintenance easier.
How Pitless Adapters Work

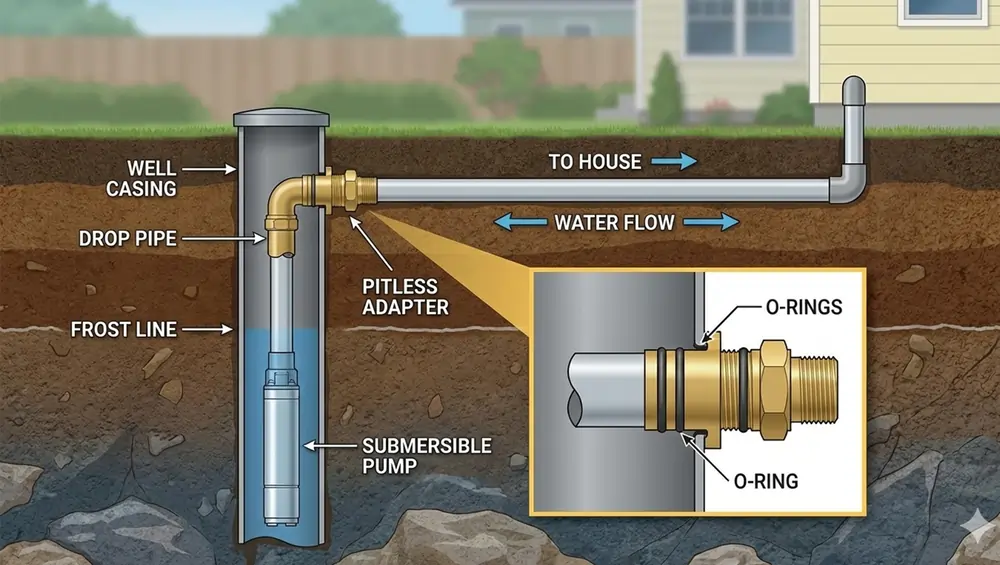

A pitless adapter connects the vertical drop pipe that comes from the well pump to the horizontal water delivery pipe. The adapter sits below the frost line in the ground. This prevents freezing and protects the connection point from temperature changes.
When the pump runs, water travels up the drop pipe and through the pitless adapter into the service line. Because the connection is buried and sealed, water stays clean and protected from surface water, dirt, and pests.
Benefits of Using a Pitless Adapter for Water Wells
Using a pitless well adapter provides several advantages:
Reduced risk of freezing: The water line stays below the frost line so freezing water and burst pipes are not a problem.
Safer and cleaner connection: There is no open casing or pit that can fill with water or debris.
Easier access for maintenance: Pulling the well pump is possible with a pitless adapter tool, making service simpler and faster.
Improved system durability: Well pitless adapters designed for modern wells last many years and reduce wear on the well pump and casing.
Types of Pitless Well Adapters
Well owners may encounter different styles of pitless adapters. The main types include:
Slide Type Pitless Adapter
This is the most common style. It slides through a hole drilled in the well casing and uses compression seals to make a watertight connection with the water line. This type allows easy removal of the pump for maintenance.
Spool Style Pitless Adapter
This adapter is installed between the well casing and a discharge housing. It provides a clear-way access inside the well casing, making it easier to pull piping and tools inside the well without obstruction. Many well professionals prefer spool style for certain well configurations.
Both types serve the same basic purpose of moving water from the well to the service line, but they differ in installation method and internal clearance.
How Deep Does the Pitless Adapter Go
The pitless adapter for well systems should be installed below the frost line. The frost line depth depends on your location and climate conditions. Placing the adapter below this depth ensures water lines remain unfrozen year round.
Installing the pitless adapter too high can expose the line to cold temperatures and risk freezing or system failure.
Installing a Pitless Adapter
Proper installation of a pitless adapter requires experience with well systems. The process involves cutting the well casing at the correct depth, installing the adapter components, sealing the connection, and hooking the underground water line to the adapter.
Because the adapter must be installed below the frost level and requires precise sealing, this is typically done by a well professional or licensed installer. Correct installation ensures a long lasting, secure connection that will protect your well system for years.
Frequently Asked Questions
What Is a Pitless Adapter in Water Wells?
A pitless adapter is a fitting that joins the pump drop pipe to your water line below ground and below the frost line, providing a water tight, frost proof connection.
How Do You Pull a Well Pump With a Pitless Adapter?
A pitless adapter tool or pull pipe is attached to the drop pipe. The adapter design allows the pipe and pump to be raised up and out of the well for replacement or service without digging.
How Far Down Is the Pitless Adapter?
The pitless adapter is located below the frost line. The exact depth varies by climate, soil conditions and local requirements for frost protection.
How Long Does a Pitless Adapter Last?
When properly installed and maintained, a pitless adapter can function well for many years. The life expectancy depends on soil conditions, material quality and fitting durability.
What Is the Average Cost to Replace a Well Pump?
Replacing a well pump includes the cost of the new pump, adapters, installation labor, and any additional well components. The total cost varies widely based on pump size, well depth and regional labor rates.
How Deep to Install a Pitless Adapter
The adapter must be positioned below the frost line. This depth varies based on local climate and ground temperature patterns, but in many regions it is several feet below the surface.
Pitless Adapter Materials and Tools
Pitless adapters are available in a range of materials including bronze, stainless steel and brass options. These materials resist corrosion, maintain a water tight seal and support long term performance.
There are also dedicated pitless adapter tools that allow a technician to connect or disconnect the pump assembly during maintenance without disturbing the underground system.
